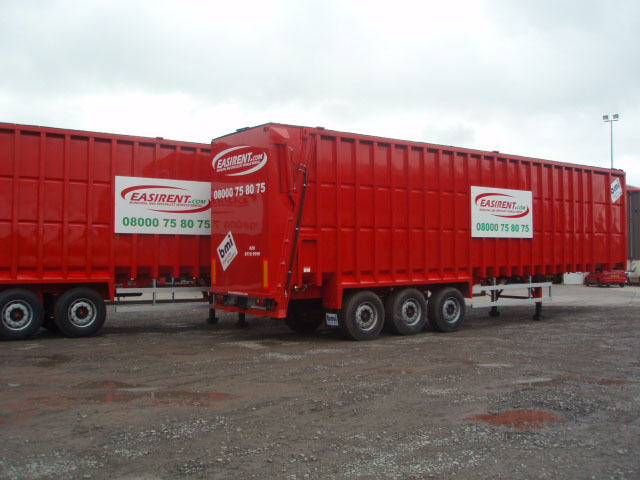

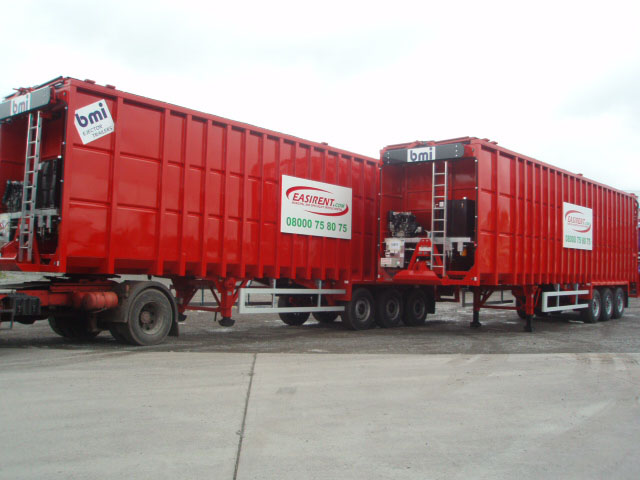

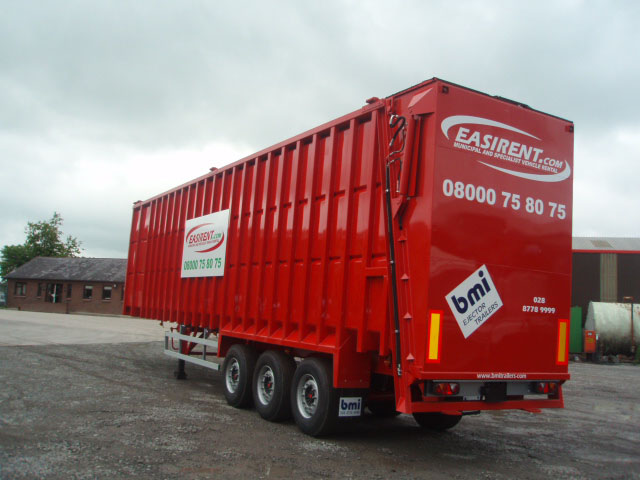

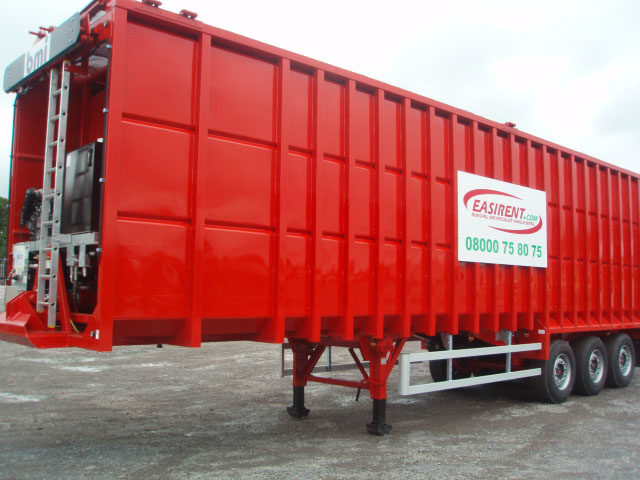

Ejection Trailer - £450.00 p/w

Tri-axle Taper Frame Ejector
Capacity 84 m (110 cu/yds)

Download: Ejector Capacity Guide (PDF)

Chassis

• Produced to Ministry Approval Standards / EEC, brake systems approved and certified
  Length: 13.6m
• GCW 44,000kgs, Axles 9000kg, King Pin 14,000kgs
• Overall Combination: 16.5m (length)
• Monocoque: Monocoque chassis is of a Taper Frame Design 'I' beams fabricated from prime quality steel.  Flanges are double cold straightened.
• Axles: 3 of SAF/BPW/Meritor disc or drum brakes
• Suspension: SAFair air suspension
• King Pin: Single position king pin fitted at 1600mm on a 12mm thickfifth wheel plate (inspection cover over king pin)
• Brakes: Wabco ABS Compact System spring brakes. Wabco Park Shunt & Lift Valves fitted to near side. Inline air filters built into system. Wabco load sensing valve. Knorr Bremse EBS systems with roll stability program.
• Landing Legs: 2 Speed Heavy Duty w/ Rocking or Flat Feet
• Electrics: 24 Volt electrical system to ISO 1185 and 3731 standards, plus designated 7638 ABS socket
• Tyres: 6 of 385/65 x 22.5 On/Off Road Continental
• Misc: Side under run guards, Rear bumper w/ Towing eye
• Finish: Premium gloss top coat, Double protective high build primer.


Body

• Floor: 4mm Hardox
• Side Thickness: 3mm Tenform steel formed with longitudinal corrugations for added strength.
• Bearers/ Uprights: 3 and 4mm Tenform steel spaced at 20" centres. Uprights 3mm Tenform high tensile steel spaced at 20" centres.
• Top Rail: Top rail of 150 x 100 x 6mm (Heavy Duty) box section
• Ejector Ram: Edbro RK222 double acting with directive valve on moveable supporting cradle
• Blade: 3mm Tenform Steel with plough shaped base. Heavy duty construction designed to give complete load ejection
• Hydraulic Tailgate: Twin ram hydraulically operated tailgate in 3mm steel, self-locking at base, with 25mm thick steel claws.
• Hydraulic System: Ram displacement 216 litres (to eject) operating to a maximum of 150 bar. Dump and relief valves along with three-stage filtration.
• Mud Wings: Integral to body with fitted mud flaps
• Misc: Ladder to nearside outer front bulkhead.
• Finish: Painted in high gloss top coat
